Gehmann 528A-22 Irisringkorn M22, 2.4-4.4, FQ

Gewinde M22x0.5, Querbalken oder Fadenkreuz

Unit price per Pcs
Item no. 17.1070
Stock
Gehmann 528A-22 Irisringkorn M22, 2.4-4.4, FQ Gehmann 528A-22 Irisringkorn M22, 2.4-4.4, FQ

Description

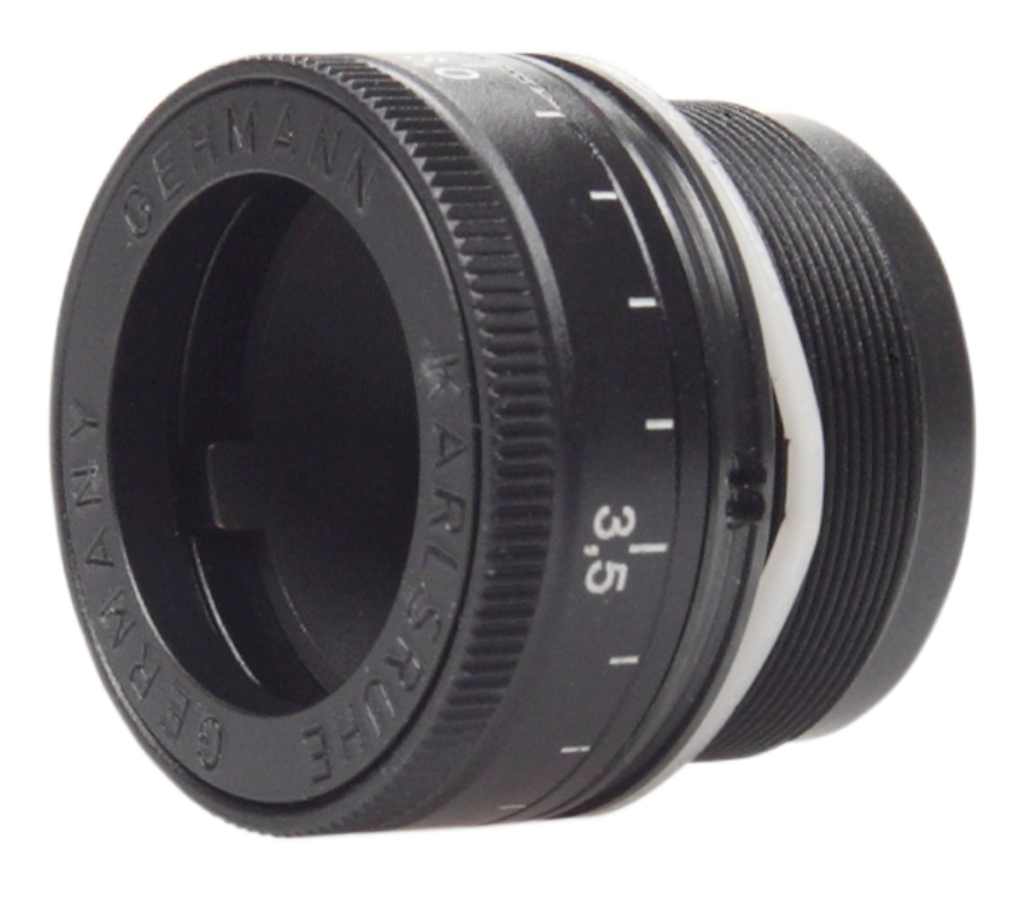

528A-22 Foresight iris M22

  • Infinitely adjustable
  • Ring thickness of the iris: 1.5mm

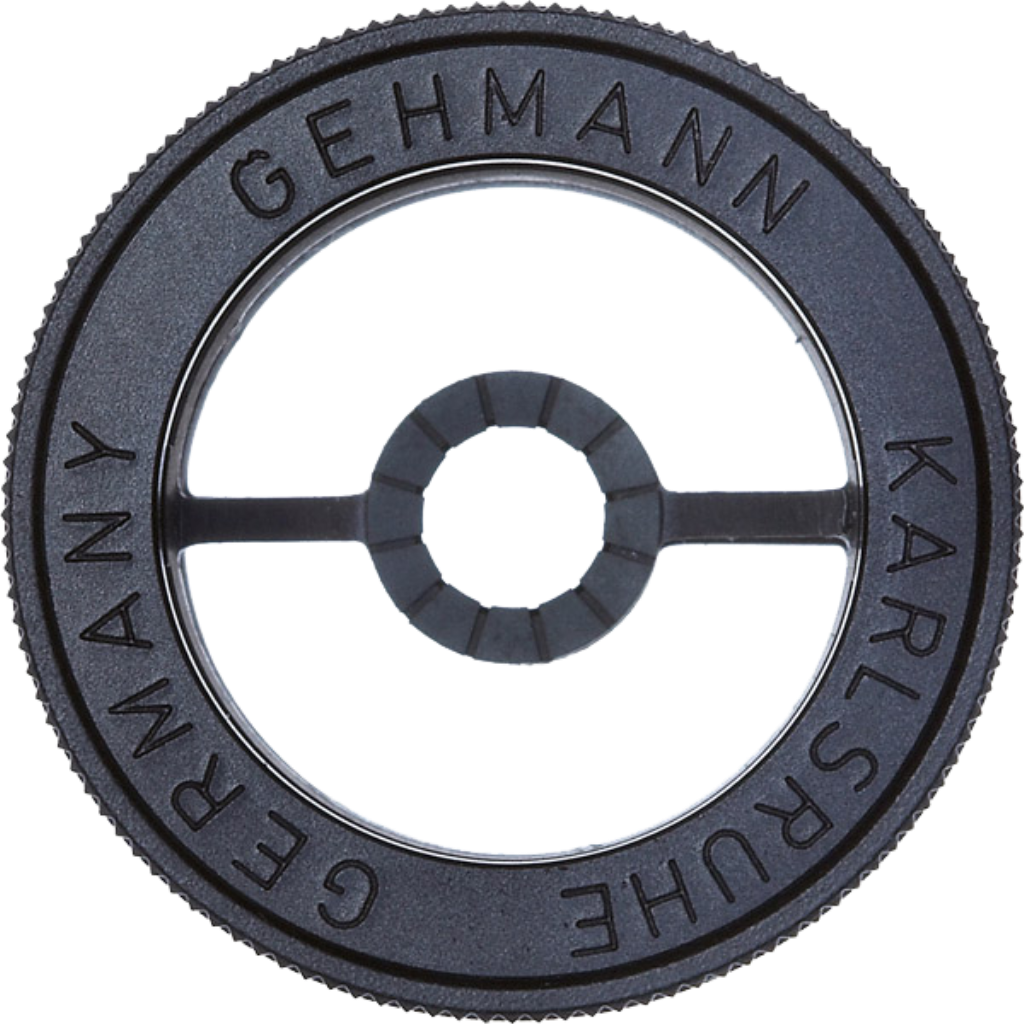

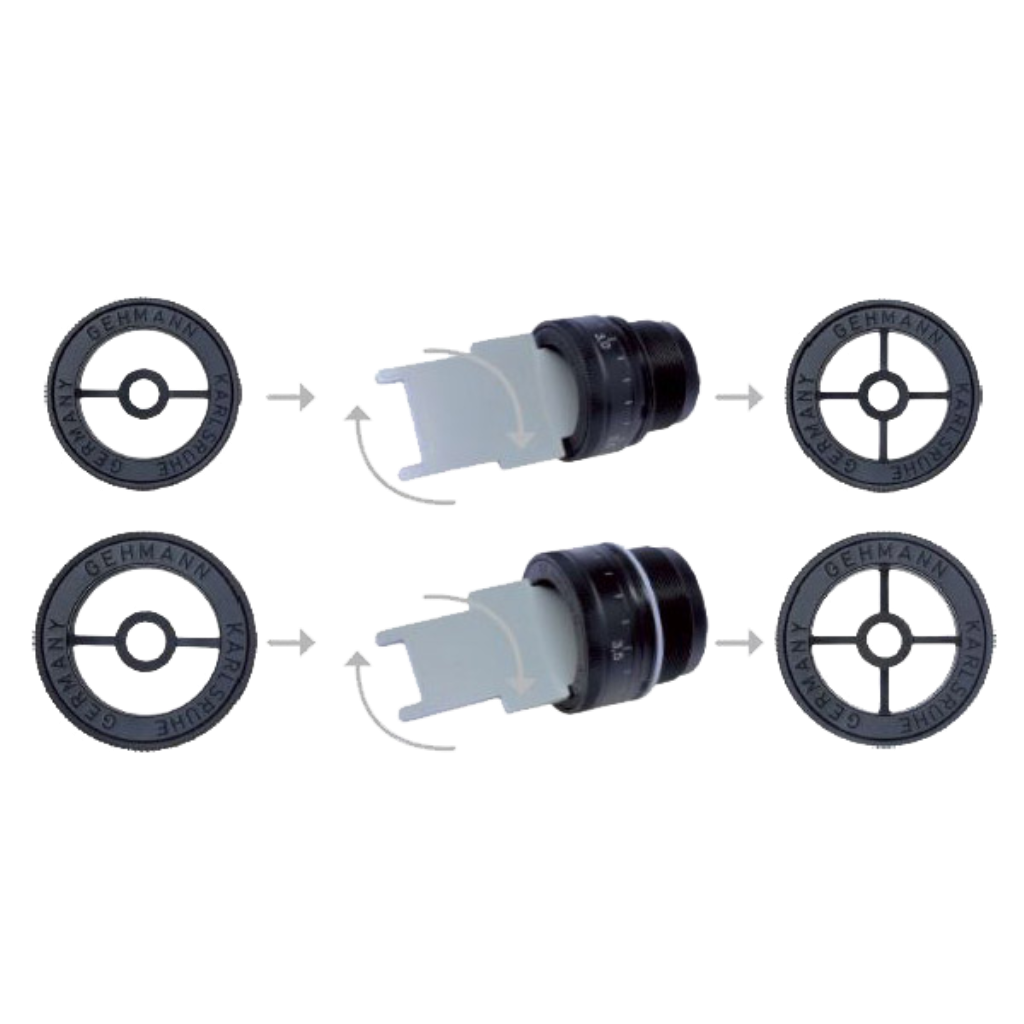

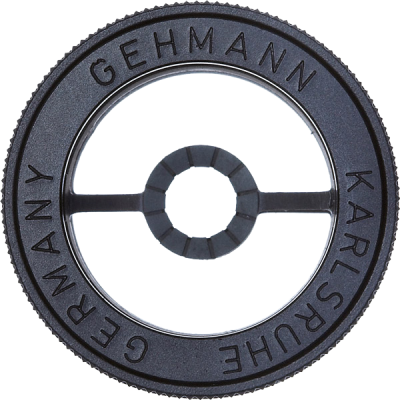

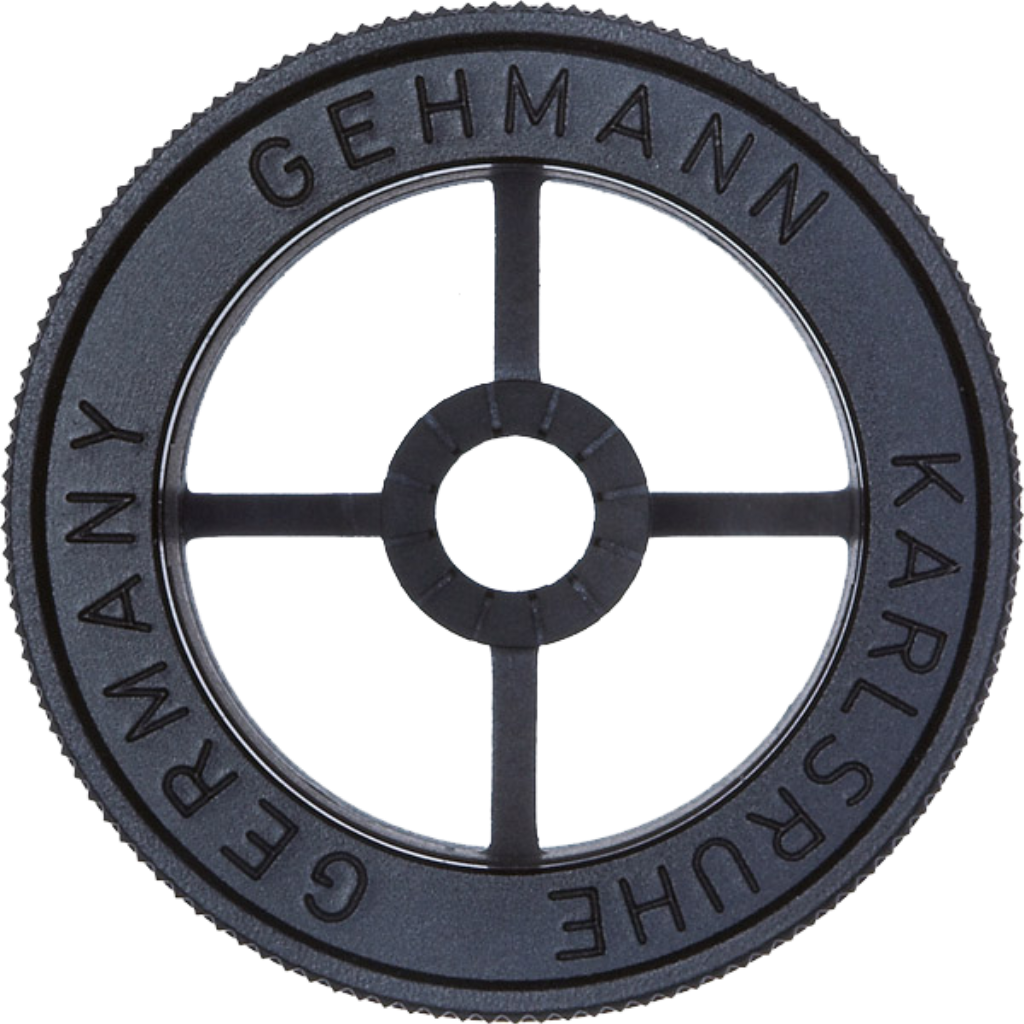

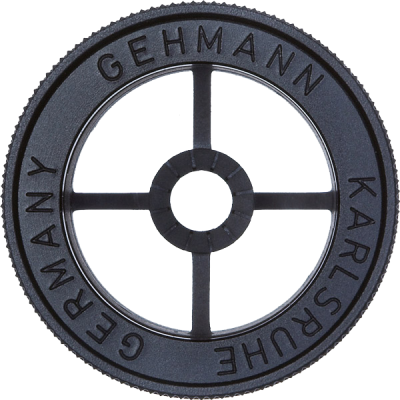

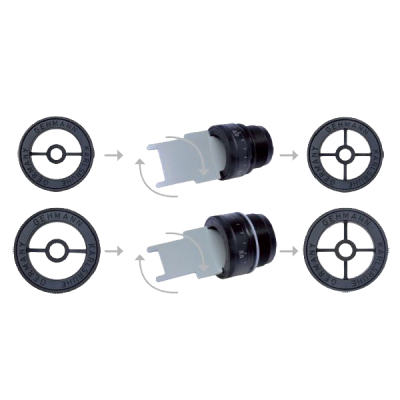

  • Can appear as horizontal bars or rotated to show a fine crosshair

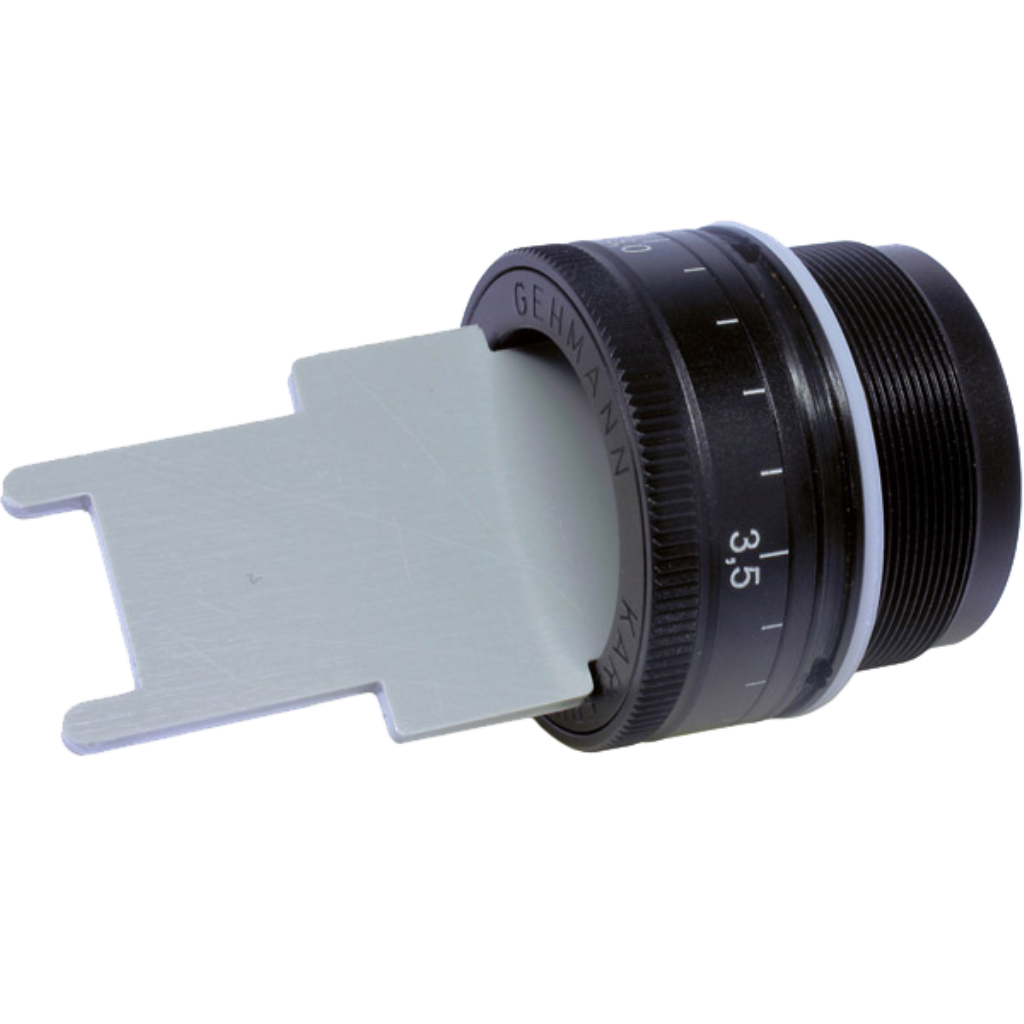

  • Supplied with plastic tool to rotate the bars
  • Thread M22 x 0,5
Adjustable
  • 528-22A adjustable from 2.4 - 4.4mm
  • 528-22B adjustable from 4.0 - 6.0mm
  • 528-22C adjustable from 2.9 - 4.9mm
Also available in our special size 528-22D which is adjustable from 5.0 - 7.5mm

Characteristics

Weight:
EN: Ringbreite:
  • Gehmann
